4-kvadrantové výkonové zesilovačové systémy
Modulární zesilovačové systémy

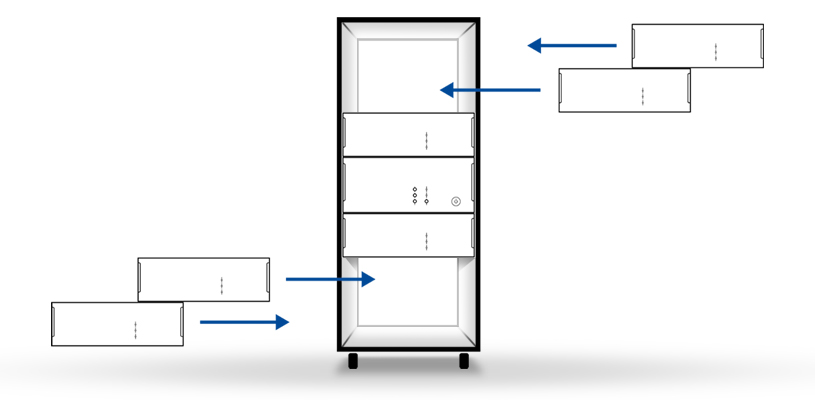

1. Začněte s jednou řídící jednotkou a dvěma zesilovači.
2. Rozšiřte systém až o dalších 18 slave zesilovačů.
3. Vyberte si kombinace pro Vaše individuální aplikace.
Features:
-
Four Quadrant Operation
- Small Signal Bandwidth DC-600 kHz
- Fast Slew Rate >60 V/µs
- High Short-Term Overcurrent Capability
- Remote Control Software included, Integration in Automated Test Systems possible
- Symmetric Input
- Series and Parallel Operation for Higher Voltage and Current Needs
- USB and LAN Interface
- Monitor Output for Voltage / Current
- 6 Configurable Compensation Networks in Current Amplifier Operating Mode
- Sense Input
- Current Measurement via High Performance Current Transformer
- Interlock
- Adjustable Output Resistance (Option)
- Isolation Amplifier (Option)
- Over-Voltage Protection (Option)
Typical Applications:
- LV123 - Electrical characteristics and electrical safety of high-voltage components in road vehicles
- LV148 - Electrical and electronic components in 48 V on-board grid of motor vehicles (Testing of 48 V DC/DC-Convertors)
- VW 80300 (Automotive Testing)
- Testing of Transformers and Current Sensors
- Testing of Fuses
Examples of Realized Projects
