TRIPPLE POWER - Battery Tester

EA-BT 20000 Series

1/3 output channels, high current, high voltage, high precision, regenerative

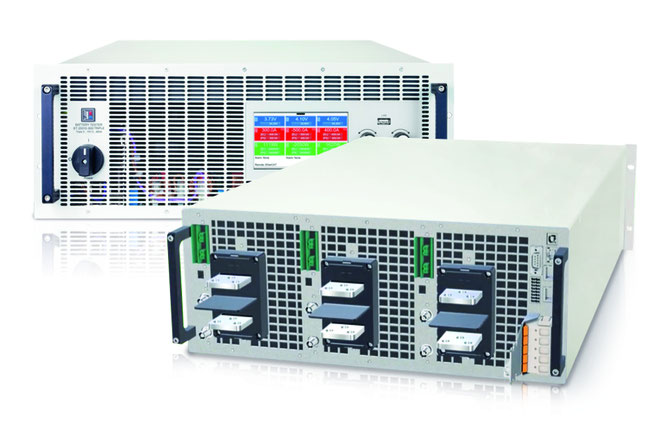

New: EA-BT 20000 Triple

The new series of battery testers and simulators is now available as 4U models with 3 output channels and regenerative energy recovery. These can be used to test 3 batteries at the same time, which is highly efficient and reduces testing and investment costs.

EA-BT 20000 3U

10 models with 6 kW and 15 kW

Model	Voltage	Courrent	Power	Technical data sheet
BT 20010-600	0 - 10 V	0 - 600 A	6 kW
BT 20060-500	0 - 60 V	0 - 500 A	15 kW
BT 20080-500	0 - 80 V	0 - 500 A	15 kW
BT 20200-210	0 - 200 V	0 - 210 A	15 kW
BT 20360-120	0 - 360 V	0 - 120 A	15 kW
BT 20500-90	0 - 500 V	0 - 90 A	15 kW
BT 20920-60	0 - 920 V	0 - 60 A	15 kW
BT 21000-40	0 - 1000 V	0 - 40 A	15 kW
BT 21500-30	0 - 1500 V	0 - 30 A	15 kW
BT 22000-20	0 - 2000 V	0 - 20 A	15 kW

EA-BT 20000 4U

10 models with 10 kW and 30 kW

Model	Voltage	Current	Power	Technical date sheet
BT 20010-1000	0 - 10 V	0 - 1000 A	10 kW	pdf
BT 20060-1000	0 - 60 V	0 - 1000 A	30 kW	pdf
BT 20080-1000	0 - 80 V	0 - 1000 A	30 kW	pdf
BT 20200-420	0 - 200 V	0 - 420 A	30 kW	pdf
BT 20360-240	0 - 360 V	0 - 240 A	30 kW	pdf
BT 20500-180	0 - 500 V	0 - 180 A	30 kW	pdf
BT 20920-120	0 - 920 V	0 - 120 A	30 kW	pdf
BT 21000-80	0 - 1000 V	0 - 80 A	30 kW	pdf
BT 21500-60	0 - 1500 V	0 - 60 A	30 kW	pdf
BT 22000-40	0 - 2000 V	0 - 40 A	30 kW	pdf

EA-BT 20000 TRIPLE 4U

8 models with 4 kW, 6 kW a 10 kW

Model	Voltage	Current	Power	Technical Datasheet
BT 20010-400 Tripple	0 - 10 V	400 A per channel	4000 W per channel	pdf
BT 20010-600 Tripple	0 - 10 V	600 A per channel	6000 W per channel	pdf
BT 20060-340 Tripple	0 - 60 V	340 A per channel	10000 W per channel	pdf
BT 20080-340 Tripple	0 - 80 V	340 A per channel	10000 W per channel	pdf
BT 20200-140 Tripple	0 - 200 V	140 A per channel	10000 W per channel	pdf
BT 20360-80 Tripple	0 - 360 V	80 A per channel	10000 W per channel	pdf
BT 20500-60 Tripple	0 - 500 V	60 A per channel	10000 W per channel	pdf
BT 20920-40 Tripple	0 - 920 V	40 A per channel	10000 W per channel	pdf

>> price inquiry
