TRIPLE POWER - Bidirectional DC Power Supplies

EA-PSB 20000 Triple Series

3 output channels, higher test capacity, high power, high current, high voltage, high precision, regenerative

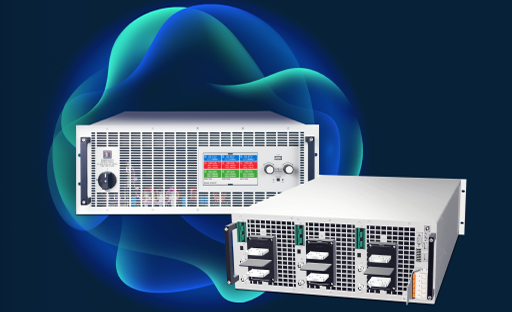

New: EA-PSB 20000 Triple

The new generation 3-channel bidirectional power supply the EA-PSB 20000 Triple allows synchronized testing to meet requirements on more power, more throughtput and more flexibility.
The product is available as a 3U and 4U version with voltage range of up to 3 x 920 V and current up to 3 x 340 A. The product can operate independently or as part of a complete test system.
The power supplies with three output channels can be used in wide application range, for example

testing of photovoltaik (PV) inverters, where two panel inputs and a third for the battery have to be tested,

or for flexible and efficient testing of modern electric vehicle (EV) components.

EA-PSB 20000 TRIPLE 4U

6 models with 30 kW output power

Model	Voltage	Current per channel	Power per channel	Total Power	Technical datasheet
PSB 20060-340 Triple	0 - 60 V	0 - 340 A	0 - 10000 W	0 - 30000 W	pdf
PSB 20080-340 Triple	0 - 80 V	0 - 340 A	0 - 10000 W	0 - 30000 W	pdf
PSB 20200-140 Triple	0 - 200 V	0 - 140 A	0 - 10000 W	0 - 30000 W	pdf
PSB 20360-80 Triple	0 - 360 V	0 - 80 A	0 - 10000 W	0 - 30000 W	pdf
PSB 20500-60 Triple	0 - 500 V	0 - 60 A	0 - 10000 W	0 - 30000 W	pdf
PSB 20920-40 Triple	0 - 920 V	0 - 40 A	0 - 10000 W	0 - 30000 W	pdf

EA-PSB 20000 TRIPLE 3U

6 models with 15 kW output power

Model	Voltage	Current per channel	Power per channel	Total Power	Technical datasheet
PSB 20060-170 Triple	0 - 60 V	0 - 170 A	0 - 5000 W	0 - 15000 W
PSB 20080-170 Triple	0 - 80 V	0 - 170 A	0 - 5000 W	0 - 15000 W
PSB 20200-70 Triple	0 - 200 V	0 - 70 A	0 - 5000 W	0 - 15000 W
PSB 20360-40 Triple	0 - 360 V	0 - 40 A	0 - 5000 W	0 - 15000 W
PSB 20500-30 Triple	0 - 500 V	0 - 30 A	0 - 5000 W	0 - 15000 W
PSB 20920-20 Triple	0 - 920 V	0 - 20 A	0 - 5000 W	0 - 15000 W
