4-Quadrant Voltage and Current Amplifiers

Note

"E" in the model name stands for additional features:

  • Amplifiers can optionally be operated as a voltage or
    a current amplifier
  • Monitoring outputs for voltage and current
  • 3 symmetrial supply voltages (for optional selection)




Key characteristics

  • Broadband lab amplifier for ohmic and complex loads
  • Ideally suitable as downstream equipment for function generators
  • Addition of two inputs with 50 Ω and 100 kΩ input resistance (option)
  • Preamplifier output (bridge out) allows simple bridge circuit structures
  • Full remote control by USB port
  • 2 supply voltages



"QE" amplifiers provide:

  • "Autocommutating" voltage supply
  • 3 bipolar supply voltages, individually switchable automatically or manually
  • Monitoring outputs for voltage and current
  • Highest sink outputs/ suitable for operation as active load

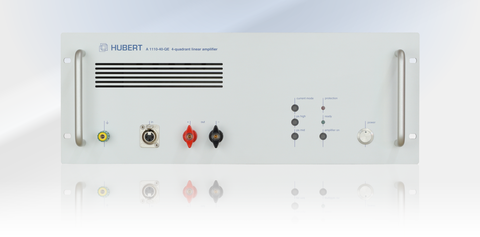

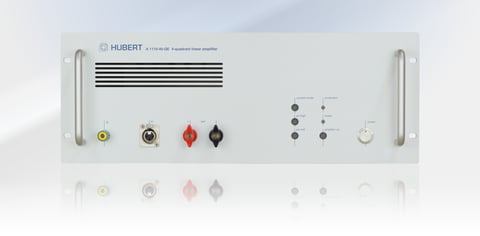

4-Quadrant Voltage and Current Amplifiers:

A 1110-05-E
DC - 1 MHz, 100 V/µs, 500 W (source), 150 W (sink)
A 1110-05-QE
DC - 1 MHz, 100 V/µs, 500 W (source), 300 W (sink)
A 1110-16-E
DC - 1 MHz, 100 V/µs, 1000 W (source), 340 W (sink)
A1110-16-QE
DC - 1 MHz, 100 V/µs, 1000 W (source), 650 W (sink)
A 1110-40-QE
DC - 1 MHz, 100 V/µs, 1200 W (source), 800 W (sink)
A 1110-40-QE-70-16    NEW!
DC - 1 MHz, 60 V/µs, 1000 W (source)

Technical Datasheets:

Download
DS_A1110-05-E_p4t.pdf
Adobe Acrobat Dokument 452.5 KB
Download
DS_A1110-05-QE_p4t.pdf
Adobe Acrobat Dokument 1.9 MB
Download
DS_A1110-16-E_p4t.pdf
Adobe Acrobat Dokument 532.3 KB
Download
DS_A1110-16-QE_p4t.pdf
Adobe Acrobat Dokument 474.4 KB
Download
DS_A1110-40-QE_p4t.pdf
Adobe Acrobat Dokument 1.5 MB
Download
DS_A1110-40-QE-70-16_p4t.pdf
Adobe Acrobat Dokument 1.3 MB


4-Quadrant Voltage Amplifiers:

A 1230-01
DC - 7 MHz, 380 V/µs, 185 W (source), 68 W (sink)

A 1230-02   NEW!
DC-7 MHz, 380 V/µs, (2x)185 W (source),(2x) 68 W (sink)

A 1110-05-A

DC - 1 MHz, 100V/µs, 500 W (source), 90 W (sink)

A 1110-16-A
DC - 1 MHz, 100 V/µs, 1000W (source), 250W (sink)

Technical Datasheets:

Download
DS_A1230-01_p4t.pdf
Adobe Acrobat Dokument 1.5 MB
Download
DS_A1230-02_p4t.pdf
Adobe Acrobat Dokument 1.1 MB
Download
DS_A1110-05-A_p4t.pdf
Adobe Acrobat Dokument 981.1 KB
Download
DS_A1110-16-A_p4t.pdf
Adobe Acrobat Dokument 1.3 MB
