Programmable bidirectional DC Power Supplies

Technical Data:

Power Levels:

600W, 1.5kW, 3kW, 5kW, 10kW, 15kW or 30kW, extendable up to 2 MW
Voltages:

0-10 V to 0-2000 V

Currents:

0-6 A to 0-1000 A per Device (Systems up to 5000 A)


Key Features:

  • Bidirectional - Load and power supplies in one

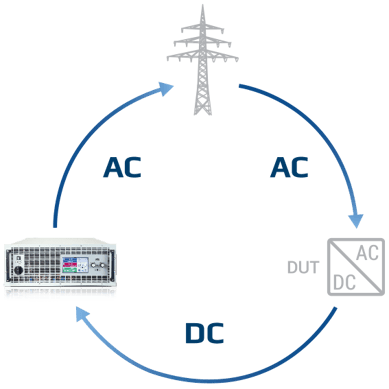

  • Energy recovery with high efficiency
  • Real battery and fuel cell simulation

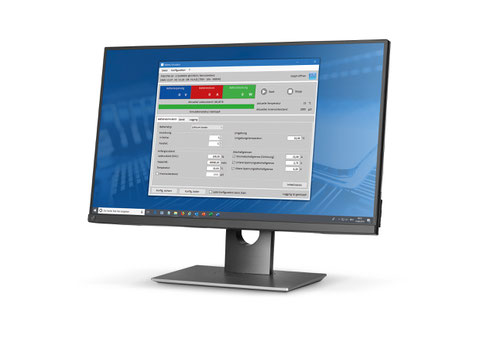

    (Li-Ion, Lead-Acid), EA-BS Software
  • Primary clocked with autoranging output
  • Protection functions (OVP, OCP, OPP, OTP)
  • Intuitive TFT touch Panel with display
  • Remote sensor input with automatic detection
  • Galvanically separated interfaces
    (analog, USB,     Ethernet) as standard
  • Integrated function generator
  • Photovoltaic source simulation, battery test
  • MPP tracking simulation
  • Optional digital interface modules
  • SCPI command language, ModBus RTU
  • LabVIEW support through VI package

Device types and series

Series Voltage Current

Power

(Autoranging)

Interfaces Features Datasheet
Download

PSB 10000 2U*

0-10V

to

0-1500V

±0-6A

to

±0-120A



600 W - 3 kW

Ethernet/USB/Analog/

Plug&Play Slot

for add. Interfaces

U  I  P  R

TFT-T  FG
BATT PV  FC

pdf

PSB 9000 3U*

0-60V

to

0-1500V

±0-20A

to

±0-360A

5-15 kW

USB/Analog/

Plug&Play Slot

for add. Interfaces

U  I  P  R

TFT-T  FG
BATT PV  FC

pdf

PSB 10000 3U*

0-10V

to

0-2000V

±0-20A
to
±0-510A

5-15 kW

Ethernet/USB/Analog/

Plug&Play Slot

for add. Interfaces

U  I  P  R

TFT-T  FG
BATT PV  FC

pdf

PSB 10000 4U*

0-60V

to

0-2000V

±0-40A

to

±0-1000A

30 kW

Ethernet/USB/Analog/

Plug&Play Slot

for add. Interfaces

U  I  P  R

TFT-T  FG
BATT PV  FC



pdf

*) Model overview of each series is shown in the tables below.

>> Quote Request

Models PSB 10000 Series 2U (600 W - 3000 W)

Model Voltage Current Power Datasheet
PSB 10010-60 2U 0-10 V 0-60 A 600 W pdf
 PSB 10060-60 2U 0...60 V 0...60 A 1500 W pdf
PSB 10080-60 2U 0...80 V 0...60A 1500 W pdf
PSB 10200-25 2U 0...200 V 0...25 A 1500 W pdf
PSB 10360-15 2U 0...360 V 0...15 A 1500 W pdf
PSB 10500-10 2U 0...500 V 0...10 A 1500 W pdf
PSB 10750-06 2U 0...750 V 0...6 A 1500 W pdf
PSB 10010-120 2U 0-10 V 0-120 A 1200 W pdf
PSB 10060-120 2U 0...60 V 0...120 A 3000 W pdf
PSB 10080-120 2U 0...80 V 0...120 A 3000 W pdf
PSB 10200-50 2U 0...200 V 0...50 A 3000 W pdf
PSB 10360-30 2U 0...360 V 0...30 A 3000 W pdf
PSB 10500-20 2U 0...500 V 0...20 A 3000 W pdf
PSB 10750-12 2U 0...750 V 0...12 A 3000 W pdf
PSB 11000-10 2U 0...1000 V 0...10 A 3000 W pdf
PSB 11500-06 2U 0...1500 V 0...6 A 3000 W pdf


Models PSB 10000 Series 3U (5.1 kW / 15 kW)

Model Voltage Current Power Datasheet
PSB 10010-510 3U 0...10 V 0...510 A 5.1 kW pdf
PSB 10060-510 3U 0...60 V 0...510 A 15 kW pdf
PSB 10080-510 3U 0...80 V 0...510 A 15 kW pdf
PSB 10200-210 3U 0...200 V 0...210 A 15 kW pdf
PSB10360-120 3U 0...360 V 0...120 A 15 kW pdf
PSB 10500-90 3U 0...500 V 0...90 A 15 kW pdf
PSB 10750-60 3U 0...750 V 0...60 A 15 kW pdf
PSB 11000-40 3U 0...1000 V 0...40 A 15 kW pdf
PSB 11500-30 3U 0...1500 V 0...30 A 15 kW pdf
PSI 12000-20 3U 0...2000 V 0...20 A 15 kW pdf


Models PSB 9000 Series  3U (5 kW - 15 kW)

Model Voltage Current Power Datasheet
PSB 9060-120 0...60 V 0...120 A 0...5 kW pdf
PSB 9080-120 0...80 V 0...120 A 0...5 kW pdf
PSB 9200-70 0...200 V 0...70 A 0...5 kW pdf
PSB 9360-40 0...360 V 0...40 A 0...5 kW pdf
PSB 9500-30 0...500 V 0...30 A 0...5 kW pdf
PSB 9750-20 0...750 V 0...20 A 0...5 kW pdf
PSB 9060-240 0...60 V 0...240 A 0...10 kW pdf
PSB 9080-240 0...80 V 0...240 A 0...10 kW pdf
PSB 9200-140 0...200 V 0...140 A 0...10 kW pdf
PSB 9360-80 0...360 V 0...80 A 0...10 kW pdf
PSB 9500-60 0...500 V 0...60 A 0...10 kW pdf
PSB 9750-60 0...750 V 0...60 A 0...10 kW pdf
PSB 9750-40 0...750 V 0...40 A 0...10 kW pdf
PSB 9060-360
PSB 9060-360 SLAVE 		0...60 V 0-360 A 0...15 kW pdf
PSB 9080-360
PSB 9080-330 SLAVE 		0...80 V 0...360 A 0...15 kW pdf

PSB 9200-210

PSB 9200-210 SLAVE

0...200 V 0...210 A 0...15 kW pdf
PSB 9360-120
PSB 9360-120 SLAVE 		0...360 V 0...120 A 0...15 kW pdf
PSB 9500-90
PSB 9500-90 SLAVE 		0...500 V 0...90 A 0...15 kW pdf
PSB 9750-60
PSB 9750-60 SLAVE 		0...750 V 0...60 A 0...15 kW pdf
PSB 91000-40
PSB 91000-40 SLAVE 		0...1000 V 0...40 A 0...15 kW pdf
PSB 91500-30
PSB 01500-30 SLAVE 		0...1500 V 0-30 A 0...15 kW pdf
License Battery Simulation Software pdf


EA Battery Simulator Software simulates Li-Ion and lead batteries.

Models PSB 10000 Series 4U (10 kW / 30 kW)

Model Voltage Current Power Datasheet
PSB 10010-1000 0...10 V 0...1000 A 0...10 kW pdf
PSB 10060-1000 0...60 V 0...1000 A 0...30 kW pdf
PSB 10080-1000 0...80 V 0...1000 A 0...30 kW pdf
PSB 10200-420 0...200 V  0...420 A 0...30 kW pdf
PSB 10360-240 0...360 V  0...240 A 0...30 kW pdf
PSB 10500-180 0...500 V  0...180 A 0...30 kW pdf
PSB 10750-120 0...750 V  0...120 A 0...30 kW pdf
PSB 10920-125 0...920 V 0...125 A 0...30 kW pdf
PSB 11000-80 0...1000 V 0...80 A 0...30 kW pdf
PSB 11500-60 0...1500 V 0...60 A 0...30 kW pdf
PSB 12000-40 0...2000 V 0...40 A 0...30 kW pdf

License Battery Simulation Software

pdf

PSB 10000 Series in 19" Racks (60 kW, 90 kW, 120 kW)

Model Voltage Current Power Datasheet
PSB 10060-2000 0...60 V  0...2000 A 0...60 kW pdf
PSB 10080-2000 0...80 V  0...2000 A 0...60 kW pdf
PSB 10200-840 0...200 V  0...840 A 0...60 kW pdf
PSB 10360-480 0...360 V 0...480 A 0...60 kW pdf
PSB 10500-360 0...500 V  0...360 A 0...60 kW pdf
PSB 10750-240 0...750 V  0...240 A 0...60 kW pdf
PSB 11000-120 0...1000 V 0...120 A 0...60 kW pdf
PSB 11500-120 0...1500 V  0...120 A 0...60 kW pdf
PSB 12000-80 0...2000 V  0...80 A 0...60 kW pdf
PSB 10060-3000 0...60 V  0...3000 A 0...90 kW pdf
PSB 10080-3000 0...80 V  0...3000 A 0...90 kW pdf
PSB 10200-1260 0...200 V  0...1260 A 0...90 kW pdf
PSB 10360-720 0...360 V  0...720 A 0...90 kW pdf
PSB 10500-540 0...500 V 0...540 A 0...90 kW pdf
PSB 10750-360 0...750 V  0...360 A 0...90 kW pdf
PSB 11000-240 0...1000 V 0...240 A 0...90 kW pdf
PSB 11500-180 0...1500 V  0...180 A 0...90 kW pdf
PSB 12000-120 0...2000 V  0...120 A 0...90 kW pdf
PSB 10200-1680 0...200 V 0...1680 A 0...120 kW pdf
PSB 10360-960 0...360 V 0...960 A 0...120 kW pdf
PSB 10500-720 0...500 V  0...720 A 0...120 kW pdf
PSB 10750-480 0...750 V 0...480 A 0...120 kW pdf
PSB 11000-240 0...1000 V  0...240 A 0...120 kW pdf

PSB 11500-180

0...1500 V  0...180 A 0...120 kW pdf

PSB 12000-160

0...2000 V 0...160 A 0...120 kW pdf

License Battery Simulation Software

pdf

>> Quote request

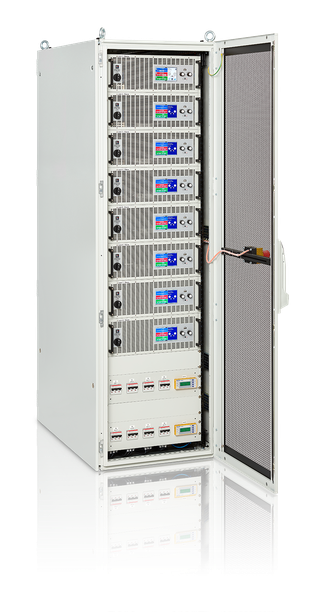

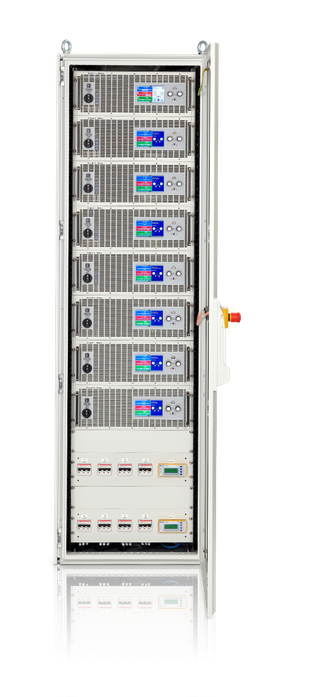

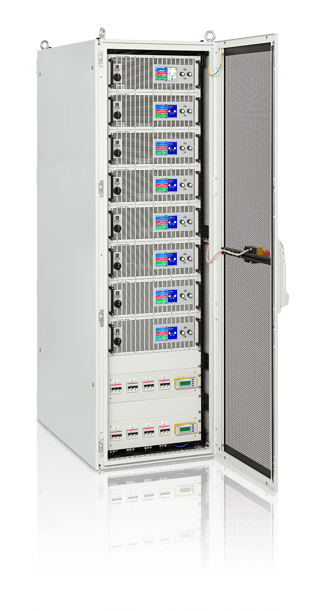

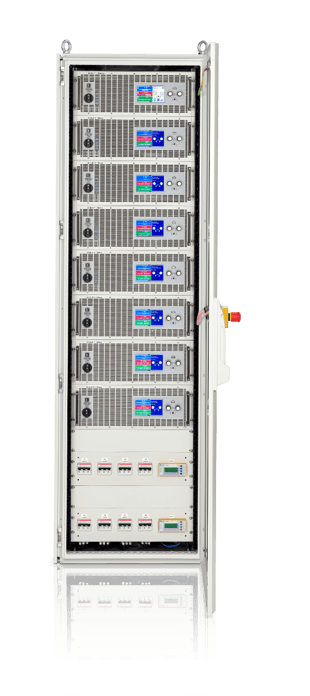

Systems and Power Racks

Technical Data

Output Power Ratings:

30 kW, 45 kW, 60 kW, 75 kW, 90 kW, .. up to 2 MW
Output Voltages:

80 V, 200 V, 360 V, 500 V, 750 V, 1500 V, 2000 V

Currents:

up to 5000 A

Key Features:

  • Pre-configured, pre-wired, ready for installation
  • Stand-alone according to EN 60950 (IT) or EN 60204-1 (machines)
  • Extensive function generator, PV, fuel cell and battery simulation
  • USB and analog interface as standard
  • Optional digital interface modules
  • Intuitivly operational HMI with coloured TFT touch panel
  • IVI Driver, DBC files (CAN bus)
  • Optional equipment on request

Further rack solutions, based on all devices due to full master/slave modularity, on request.
