Floating AC/DC LV Power Supplies

Floating AC/DC Low Voltage Power Supplies

FPS Series

As alternative to an HPS high voltage power supply with integrated filament supply the FPS series is a dedicated current supply for filaments, often used in electron beam applications (e.g. EBPVD). The main advantage is the possibility to combine with HPS high voltage power supplies, where the filament supply can be driven on high voltage potential from the HPS. Therefore the FPS has a HV input connector and an HV-filament output connector.

Key Features

dedicated fi lament supply unit for e-beam based coating applications
filament supply on HV potential via HV-in connector
USB, AIO, CAN, RS232, Ethernet interfaces
optional front panel operation with LCD
direct heating control or parent emission regulation

Device types and series / FPS Series

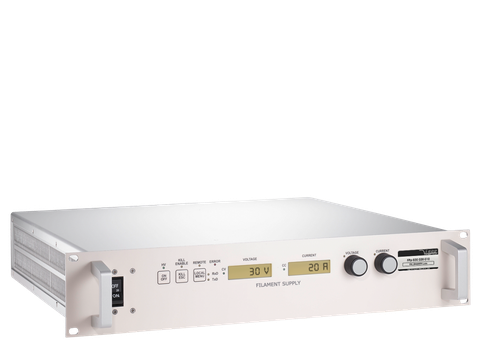

model	FPS	Image
Channels	1
Vnom	10V - 60V
Ripple & Noise	1· % Inom
HV Connector	HV-CABLE, SHV
Interfaces	USB CAN ETHERNET RS232 AIO
Options
Manual	see configurations
Datasheet download	pdf

*) Model overview is shown in the table below.

Models FPS (100W / 600W) 2U

Model	Vnom	I_nom	P_nom	@iV	HV con.	case
FPd 010 060 010	10 V	60 A	600 W	10 kV	HV-CABLE	2U
FPd 012 050 010	12 V	50 A	600 W	10 kV	HV-CABLE	2U
FPd 030 020 010	30 V	20 A	600 W	10 kV	HV-CABLE	2U
FPd 040 015 010	40 V	15 A	600 W	10 kV	HV-CABLE	2U
FPd 060 010 010	60 V	10 A	600 W	10 kV	HV-CABLE	2U
FPd 012 008 010	12.5 V	8 A	100 W	10 kV	HV-CABLE	2U

All FPS models: positive polarity, 1 channel
