Programovatelné výkonové DC zdroje



Key Features:

  • Primary clocked with autoranging output
  • Protection functions (OVP, OCP, OPP, OTP)
  • Intuitive TFT touch panel
  • Remote sensor input with automatic detection
  • Galvanically separated interfaces (analog, USB,
    Ethernet as standard)
  • Integrated function generator
  • Photovoltaic source simulation
  • Internal resistance control
  • Optional, digital, pluggable interface modules
  • SCPI and ModBus RTU command language



Technická data

Výkony:

1.0 kW do 2 MW
Napětí:

0-40 Vdc do 0-2000 Vdc

Proudy:

0-6 A do 0-1000 A (systémy až do 5000 A)






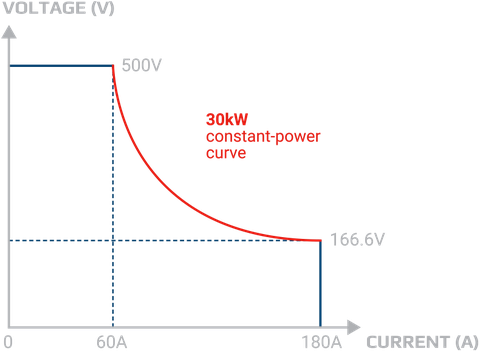

Série Výška Napětí Proud

Výkon

(Autoranging)

Rozhraní Zvláštní funkce Technický list

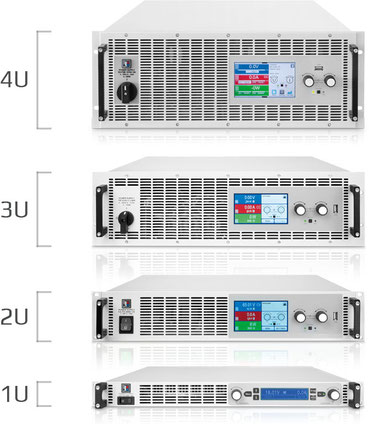

 EA-PS 9000 1U* 1HU 0-80V do 0-750V 0-6A do 0-100A 1500-3000W

USB/Analog/LAN

altern. USB/Analog/GPIB

U  I  P pdf
EA-PS 9000 2U* 2HU 0-40V do 0-750V 0-6A do 0-120A 1000-3000W

USB/Analog/LAN

altern. USB/Analog/GPIB

U  I  P  TFT pdf
EA-PSI 9000 2U* 2HU 0-40V do 0-750V 0-6A do 0-120A 1000-3000W

USB/Analog/Plug&Play Slot

pro další rozhraní

U  I  P  R

TFT-T  FG  PV

FC

pdf
EA-PS 9000 3U* 3HU 0-40V do 0-1500V 0-20A do 0-510A 3.3-15 kW

USB/Analog/LAN

altern. USB/Analog/GPIB

U  I  P  TFT pdf
EA-PSI 9000 3U* 3HU 0-40V do 0-1500V 0-20A do 0-510A 3.3-15 kW

USB/Analog/Plug&Play Slot

pro další rozhraní

U  I  P  R

TFT-T  FG  PV

 FC

pdf

 EA-PSI 9000

15/24U WR*

15/24HU

rack

0-40V do 0-1500V   0-90A do 0-3060A  30-90 kW  USB/Analog/Plug&Play Slot

pro další rozhraní

 U  I  P  R

TFT-T  FG  PV

 FC

pdf

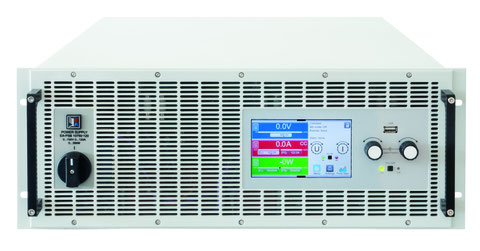

 EA-PSI 10000 4U* 4HU  0-60V do 0-2000V    0-40A do 0-1000A 30 kW    USB/Analog/Plug&Play Slot

pro další rozhraní

  U  I  P  R

TFT-T  FG  PV

 FC

pdf

*) Seznamy modelů jednotlivých sérií naleznete v níže uvedených tabulkách.


Modely série PSB 9000 1U (1500W - 3000W)

Model Napě
Proud Výkon Technický
list
PS 9080-50 1U 0...80 V 0...50 A 1500 W pdf
PS 9200-25 1U 0...200 V 0...25 A 1500 W pdf
PS 9360-15 1U 0...360 V 0...15 A 1500 W pdf
PS 9500-10 1U 0...500 V 0...10 A 1500 W pdf
PS 9750-6 1U 0...750 V 0...5 A 1500 W

pdf

PS 9080-100 1U 0...80 V 0...100 A 3000 W

pdf

PS 9200-50 1U 0...200 V 0...50 A 3000 W pdf
PS 9360-30 1U 0...360 V 0...30 A 3000 W pdf
PS 9500-20 1U 0...500 V 0...20 A 3000 W pdf
PS 9750-12 1U 0...750 V 0...12 A 3000 W pdf


Modely série PS 9000 2U (1000W - 3000W)

Model Napě Proud Výkon Technický
list
PS 9040-40 2U 0...40 V 0...40 A 1000 W pdf
PS 9080-40 2U 0...80 V 0...40 A 1000 W pdf
PS 9200-15 2U 0...200 V 0...15 A 1000 W pdf
PS 9360-10 2U 0...360 V 0...10 A 1000 W pdf
PS 9500-06 2U 0...500 V 0...6 A 1000 W pdf
PS 9750-04 2U 0...750 V 0...4 A 1000 W pdf
PS 9040-60 2U 0...40 V 0...60 A 1500 W pdf
PS 9080-60 2U 0...80 V 0...60 A 1500 W pdf
PS 9200-25 2U 0...200 V 0...25 A 1500 W pdf
PS 9360-15 2U 0...360 V 0...15 A 1500 W pdf
PS 9500-10 2U 0...500 V 0...10 A 1500 W pdf
PS 9750-06 2U 0...750 V 0...6 A 1500 W pdf
PS 9040-120 2U 0...40 V 0...120 A 3000 W pdf
PS 9080-120 2U 0...80 V 0...120 A 3000 W pdf
PS 9200-50 2U 0...200 V 0...50 A 3000 W pdf
PS 9360-30 2U 0...360 V 0...30 A 3000 W pdf
PS 9500-20 2U 0...500 V 0...20 A 3000 W pdf
PS 9750-12 2U 0...750 V 0...12 A 3000 W pdf


Modely série PSI 9000 2U (1000W - 3000W)

Model Napě Proud Výkon Technický
list
PSI 9080-40 2U 0...80 V 0...40 A 1000 W pdf
PSI 9200-15 2U 0...200 V 0...15 A 1000 W pdf
PSI 9360-10 2U 0...360 V 0...10 A 1000 W pdf
PSI 9500-06 2U 0...500 V 0...6 A 1000 W pdf
PSI 9750-04 2U 0...750 V 0...4 A 1000 W pdf
PSI 9080-60 2U 0...80 V 0...60 A 1500 W pdf
PSI 9200-25 2U 0...200 V 0...25 A 1500 W pdf
PSI 9360-15 2U 0...360 V 0...15 A 1500 W pdf
PSI 9500-10 2U 0...500 V 0...10 A 1500 W pdf
PSI 9750-06 2U 0...750 V 0...6 A 1500 W pdf
PSI 9080-120 2U 0...80 V 0...120 A 3000 W pdf
PSI 9200-50 2U 0...200 V 0...50 A 3000 W pdf
PSI 9360-30 2U 0...360 V 0...30 A 3000 W pdf
PSI 9500-20 2U 0...500 V 0...20 A 3000 W pdf
PSI 9750-12 2U 0...750 V 0...12 A 3000 W pdf


Modely série PS 9000 3U (3.3kW - 15kW)

Modell Napě Proud Výkon Technický
list
PS 9040-170 3U 0...40 V 0...170 A 3.3 kW pdf
PS 9080-170 3U 0...80 V 0...170 A 5 kW pdf
PS 9200-70 3U 0...200 V 0...70 A 5 kW pdf
PS 9360-40 3U 0...360 V 0...40 A 5 kW pdf
PS 9500-30 3U 0...500 V 0...30 A 5 kW pdf
PS 9750-20 3U 0...750 V 0...20 A 5 kW pdf
PS 9040-340 3U 0...40 V 0...340 A 6.6 kW pdf
PS 9040-510 3U 0...40 V 0...510 A 10 kW pdf
PS 9080-340 3U 0...80 V 0...340 A 10 kW pdf
PS 9200-140 3U 0...200 V 0...140 A 10 kW pdf
PS 9360-80 3U 0...360 V 0...80 A 10 kW pdf
PS 9500-60 3U 0...500 V 0...60 A 10 kW pdf
PS 9750-40 3U 0...750 V 0...40 A 10 kW pdf
PS 91000-30 3U 0...1000 V 0...30 A 10 kW pdf
PS 9080-510 3U 0...80 V 0...120 A 15 kW pdf
PS 9200-210 3U 0...200 V 0...210 A 15 kW pdf
PS 9360-120 3U 0...360 V 0...120 A 15 kW pdf
PS 9500-90 3U 0...500 V 0...90 A 15 kW pdf
PS 9750-60 3U 0...750 V 0...60 A 15 kW pdf
PS 91500-30 3U 0...1500 V 0...30 A 15 kW pdf


Modely série PSI 9000 3U (3.3kW - 15kW)

Model Napě Proud Výkon Technický
list
PSI 9040-170 3U 0...40 V 0...170 A 3.3 kW pdf
PSI 9080-170 3U 0...80 V 0...170 A 5 kW pdf
PSI 9200-70 3U 0...200 V 0...70 A 5 kW pdf
PSI 9360-40 3U 0...360 V 0...40 A 5 kW pdf
PSI 9500-30 3U 0...500 V 0...30 A 5 kW pdf
PSI 9750-20 3U 0...750 V 0...20 A 5 kW pdf
PSI 9040-340 3U 0...40 V 0...340 A 6.6 kW pdf
PSI 9040-510 3U 0...40 V 0...510 A 10 kW pdf
PSI 9080-340 3U 0...80 V 0...340 A 10 kW pdf
PSI 9200-140 3U 0...200 V 0...140 A 10 kW pdf
PSI 9360-80 3U 0...360 V 0...80 A 10 kW pdf
PSI 9500-60 3U 0...500 V 0...60 A 10 kW pdf
PSI 9750-40 3U 0...750 V 0...40 A 10 kW pdf
PSI 91000-30 3U 0...1000 V 0...30 A 10 kW pdf
PSI 9080-510 3U 0...80 V 0...120 A 15 kW pdf
PSI 9200-210 3U 0...200 V 0...210 A 15 kW pdf
PSI 9360-120 3U 0...360 V 0...120 A 15 kW pdf
 PSI 9500-90 3U 0...500 V 0...90 A 15 kW pdf
PSI 9750-60  3U 0...750 V 0...60 A 15 kW pdf
PSI 91500-30 3U 0...1500 V 0...30 A 15 kW pdf


Modely série PSI 10000 4U (30 kW)

Model Napě Proud Výkon Technický
list
PSI 10060-1000 4U 0...60 V 0...1000 A 30 kW pdf
PSI 10080-1000 4U 0...80 V 0...1000 A 30 kW pdf
PSI 10200-420 4U 0...200 V 0...420 A 30 kW  pdf
PSI 10360-240 4U 0...360 V 0...240 A 30 kW  pdf
PSI 10500-180 4U 0...500 V 0...180 A 30 kW  pdf
PSI 10750-120 4U 0...750 V 0...120 A 30 kW  pdf
PSI 11000-80 4U 0...1000 V 0...80 A 30 kW  pdf
PSI 11500-60 4U 0...1500 V 0...60 A 30 kW  pdf


Modely série PSI 9000 15U (30kW - 45kW)

Model Napě Proud Výkon Technický
list
PSI 9080-1020 15U 0...80 V 0...1020 A 30 kW pdf
PSI 9200-420 15U 0...200 V 0...420 A 30 kW pdf
PSI 9360-240 15U 0...360 V 0...240 A 30 kW pdf
PSI 9500-180 15U 0...500 V 0...180 A 30 kW pdf
PSI 9750-120 15U 0...750 V 0...120 A 30 kW pdf
PSI 91000-80 15U 0...1000 V 0...80 A 30 kW pdf
PSI 91500-60 15U 0...1500 V 0...60 A 30 kW pdf
PSI 9080-1530 15U 0...80 V 0...1530 A 45 kW pdf
PSI 9200-630 15U 0...200 V 0...630 A 45 kW pdf
PSI 9360-360 15U 0...360 V 0...360 A 45 kW pdf
PSI 9500-270 15U 0...500 V 0...270 A 45 kW pdf
PSI 9750-180 15U 0...750 V 0...180 A 45 kW pdf
PSI 91000-120 15U 0...1000 V 0...120 A 45 kW pdf
PSI 91500-90 15U 0...1500 V 0...90 A 45 kW pdf


Modely série PSI 9000 24U (60kW - 90kW)

Model Napě Proud Výkon Technický
list
PSI 9080-2040 24U  0...80 V 0...2040 A 60 kW pdf
PSI 9200-840 24U 0...200 V  0...840 A 60 kW pdf
PSI 9360-480 24U 0...360 V 0...480 A 60 kW pdf
PSI 9500-360 24U 0...500 V 0...360 A 60 kW pdf
PSI 9750-240 24U 0...750 V 0...240 A 60 kW pdf
PSI 91000-160 24U 0...1000 V 0...160 A 60 kW pdf
PSI 91500-120 24U 0...1500 V 0...120 A 60 kW pdf
PSI 9080-2550 24U 0...80 V 0...2550 A 75 kW pdf
PSI 9200-1050 24U 0...200 V 0...1050 A 75 kW pdf
PSI 9360-600 24U 0...360 V 0...600 A 75 kW pdf
PSI 9500-450 24U 0...500 V 0...450 A 75 kW pdf
PSI 9750-300 24U 0...750 V 0...300 A 75 kW pdf
PSI 91000-200 24U 0...1000 V 0...200 A 75 kW pdf
PSI 91500-150 24U 0...1500 V 0...150 A 75 kW pdf
PSI 9080-3060 24U 0...80 V 0...3060 A 90 kW pdf
PSI 9200-1260 24U 0...200 V 0...1260 A 90 kW pdf
PSI 9360-720 24U 0...360 V 0...720 A 90 kW pdf
PSI 9500-540 24U 0...500 V 0...540 A 90 kW pdf
PSI 9750-360 24U 0...750 V 0...360 A 90 kW pdf
PSI 91000-240 24U 0...1000 V 0...240 A 90 kW pdf
PSI 91500-180 24U 0...1500 V 0...180 A 90 kW pdf

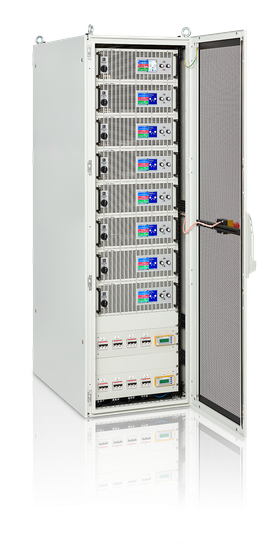

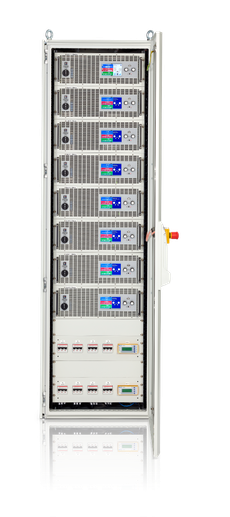

Systémy a výkonové racky

Další racková řešení na poptávku, možné se všemi modely na základě plné master/slave modularity.

Technická data

Výstupní jmenovité hodnoty výkonu:

30 kW, 45 kW, 60 kW, 75 kW, 90 kW, .. až do 2 MW
Výstupní napětí:

80 V, 200 V, 360 V, 500 V, 750 V, 1500 V, 2000 V

Proudy:

až do 5000 A

Key Features:

  • Pre-configured, pre-wired, ready for installation
  • Stand-alone according to EN 60950 (IT) or EN 60204-1 (machines)
  • Extensive function generator, PV, fuel cell and battery simulation
  • USB and analog interface as standard
  • Optional digital interface modules
  • Intuitivly operational HMI with coloured TFT touch panel
  • IVI Driver, DBC files (CAN bus)
  • Optional equipment on request
