Vícekanalové AC/DC laboratorní VN zdroje

Multi Channel AC/DC Laboratory HV Supplies

THQ Series

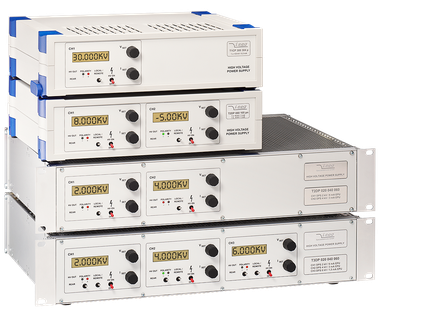

The inexpensive and robust desktop high voltage power supplies are equipped with proven high voltage modules of the CPS, DPS and EPS series.

The units are available with either 1, 2 or 3 high voltage channels in many variations and combinations. The output voltage is controlled via the 10-turn potentiometer, the USB interface or the analog I/O. Output voltage and current is displayed

on a 2 line LCD per channel, located on the front panel.

Key Features:

can be equipped with CPS, DPS or EPS modules
common USB or analog interface per channel
cost efficient and flexible
LCD and front panel operation
high precision / very low ripple and noise (with DPS)

Application Areas:

Research and Education
Development Labs
Industrial Applications

Device types and series / THQ Series

Model	THQ 19"	THQ compact
Channels	1 - 3	1 - 3
Vnom	0.5 - 30kV	0.5 - 30kV
Interfaces	USB, AIO	USB, AIO
Datasheet download	pdf

*) Model overview of each series is shown in the tables below.

>> Quote request

Models THQ compact Series (0.5 - 30kV)

Model	_Vnom	P_nom/ch	channel	case
THQ 1CH 60W EPU*	0.5 - 6kV	60W	1	desktop
THQ 2CH 60W EPU*	0.5 - 6kV	60W	2	desktop
THQ 1 CH 60W	0.5 - 7kV	60W	1	desktop
THQ 2CH 60W ≤ 7kV	0.5 - 7kV	60W	2	desktop
THQ 1CH 60W ≤ 16kV	0.5 - 16kV	60W	1	desktop
THQ 2CH 60W ≤ 16kV	0.5 - 16kV	60W	2	desktop
THQ 1CH 60W ≤ 30kV	0.5 - 30kV	60W	1	desktop
THQ 1CH 120W ≤ 7kV	0.5 - 7kV	120W	1	desktop
THQ 1CH 120W ≤ 16kV	0.5 - 16kV	120W	1	desktop
THQ 1CH 120W ≤ 30kV	0.5 - 30kV	120W	1	desktop

*EPU: polarity electronically switchable (positive/negative)

Models THQ 19" Series (0.5 - 30kV)

Model	V_nom	P_nom/ch	channel	case
THQ 1CH 2HE 60W	0.5 - 30kV	60W	1	2U
THQ 1CH 2HE 200W	0.5 - 30kV	200W	1	2U
THQ 2CH 2HE 60W	0.5 - 30kV	60W	2	2U
THQ 2CH 2HE 200W	0.5 - 30kV	200W	2	2U
THQ 3CH 2HE 100W	0.5 - 30kV	100W	3	2U
