20-Channel Battery Impedance Meter

Technical Data:

Channels: 20

Frequency range: 1 mHz - 10 kHz
Max. AC current: 10 A

Max DC Voltage/Current: 5 V / 1 A

Accurate impedance and deeper insight:

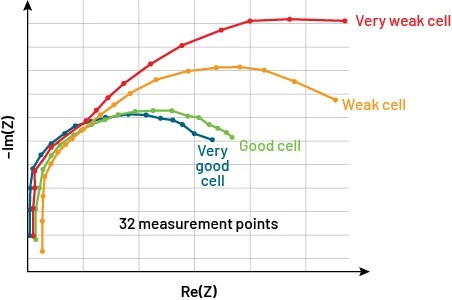

Broad frequency EIS (Electrochemical Impedance Spectroscopy) delivers deeper insight into the condition of your battery cells.

Better than 1% impedance measurement accuracy
1 mHz to 10 kHz frequency range
20 channels of 4-wire PT100 temperature sensors
Includes built-in battery cell charge/discharge up to 1 A at 5 V
Combine with larger test systems such as EA-BCTS

Easily add EIS to your battery testing

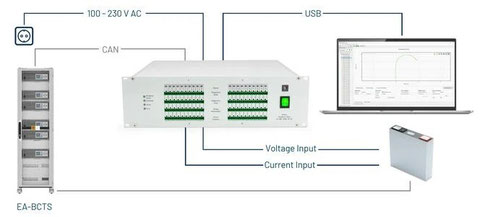

The EA-BIM 20005 impedance meter can be easily integrated into existing battery test automation systems.

USB device port for connection to your PC
CAN bus to communicate with battery cycling test systems
20 EIS plus temperature channels in just 3U
< 60 W power consumption

Fastest EIS in the industry

The BIM 20005 is the perfect choice for high volume test requirements.

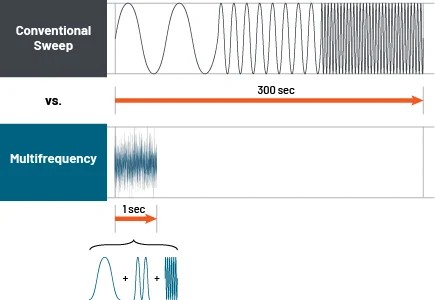

Multi-frequency pulses deliver measurements hundreds of times faster than traditional swept measurements
20 multiplexed EIS-measurement channels

Simple and intuitive electrochemical impedance spectroscopy

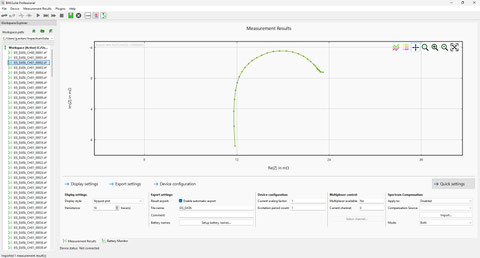

The included BIM.Suite software is both easy to use and powerful, catering to all your cell characterization testing needs. Configure the settings effortlessly and begin your first EIS measurement immediately.

Evaluate measurements with built-in visualizations and analysis
Perform standard sweep measurements or rapid multi-sine measurements
Measure while charging or discharging
Record results in your preferred file formats

Device types and series

Series	Height	Voltage	Current	Channels	Interfaces	Datasheet Download
EA-BIM 20005-10-20	3HU	0-5 V 1A	1 A	20	USB, 2x CAN	pdf
