DC/DC High Voltage Converters 0.2kV up to 30kV

DC/DC High Voltage Converters

APS Series	Small High Voltage print modules for PCB mounting up to 1W
BPS Series	High Voltage print modules for PCB mounting up to 4W
CPS Series	Build-in compact high voltage modules
DPS Series	High precision build-in compact HV modules
EPS Series	Versatile built-in power HV modules

Module Type Overview

Type	Power	Vnom	Vin	Channels	Case Format	Interfaces	HV Connectors	Datasheet
APS	0.5 / 1 W	0.2 -1 kV	5 V	1	PCB module	AIO (pin)	pin	pdf
BPS	1 / 3 / 4 W	0.3 - 6 kV	5/12 V	1	PCB module	AIO (pin)	pin	pdf
CPS	12 W	0.5 - 30 kV	24 V	1	metal box	AIO (D-SUB9)	cable	pdf
CPS-mini	8 W	1 - 6 kV	24 V	1	PCB module	AIO (pin)	pin	pdf
DPS	12 W	0.5 - 6 kV	24 V	1	metal box	AIO (D-SUB9)	cable / SHV	pdf
DPS-mini	9 W	0.5 - 10 kV	24 V	1	mini metal box	AIO (D-SUB9)	cable / SHV	pdf
EPS	60 / 150 W	0.5 - 30 kV	24 V	1	metal box	AIO (D-SUB9)	cable / SHV / GES	pdf

*) Model overview of each series is shown in the tables below.

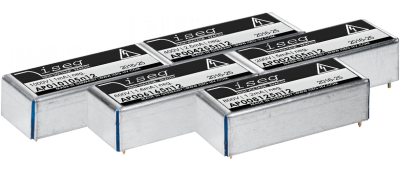

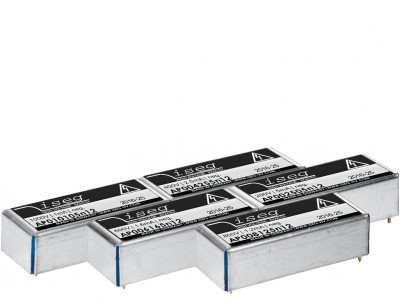

APS Series

Small High Voltage print modules for PCB mounting up to 1W
APS modules are very small DC/DC converters that can be mounted and soldered on PCBs. The output voltage is controllable with either an external potentiometer or an analog control voltage. The patented resonance converter technology and moulded metal box shielding guarantee lowest electromagnetic interference and low ripple and noise of the output voltage.

Key Features

Patented resonance converter technology
Controlled by analog set voltage
Monitor voltage
Low ripple an d noise, low EMI
Internal reference voltage
Customized versions on request

Application Areas

Reseach & Development
Experimantal setup
Laboratory use

Module types / APS Series

Specifications	APS 0.5 W	APS 1 W
Polarity	factory fixed, positive or negative	factory fixed, positive or negative
Ripple and noise (f >10 Hz)	typ. < 10 mVp-p	typ. < 10 mVp-p
Stability [ΔV_out/ΔV_in]	<1 • 10^-3 • V_nom	<1 • 10^-3 • V_nom
Stability [ΔV_out/ΔR_out]	<2 • 10^-3 • V_nom	<2 • 10^-3 • V_nom
Temperature coefficient	< 50 ppm / K	< 50 ppm / K
Supply voltage	4.5 - 5.5 V	11.5 - 15.5 V
Set / monitor voltage	0 - 2.5 V	0 - 5 V
Protection	overload and short circuit protected	overload and short circuit protected
HV connector	pin	pin
Case	metal box, moulded	metal box, moulded
Dimensions - L/W/H	40/16/12.2 mm	40/16/12.2 mm

Model Configurations APS Series

APS 0.5 W	Power	Vnom	Inom	APS 1 W	Power	Vnom	Inom
APx 02 255 5	0.5 W	200 V	2.5 mA	APx 02 505 12	1 W	200 V	5 mA
APx 04 125 5	0.5 W	400 V	1.2 mA	APx 04 255 12	1 W	400 V	2.5 mA
APx 06 804 5	0.5 W	600 V	0.8 mA	APx 06 165 12	1 W	600 V	1.6 mA
APx 08 604 5	0.5 W	800 V	0.6 mA	APx 08 125 12	1 W	800 V	1.2 mA
APx 10 504 5	0.5 W	1 kV	0.5 mA	APx 10 105 12	1 W	1 kV	1 mA

OPTION SPECIFICATIONS:

Polarity: positive: x = p, negative: x = n

Quote request

Technical Datasheet APS Series

DS_iseg_aps_p4t_.pdf

Adobe Acrobat Dokument 5.1 MB

Download

BPS Series

Small High Voltage print modules for PCB mounting up to 4W
BPS modules are small DC/DC converters that can be mounted and soldered on PCBs. The output voltage is controllable with either an external potentiometer or an analog control voltage. The patented resonance converter technology and moulded metal box shielding guarantee lowest electromagnetic interference and low ripple and noise of the output voltage.

Key Features

Patented resonance converter technology
Controlled by analog set voltage
Monitor voltage
Low ripple an d noise, low EMI
Internal reference voltage
Customized versions on request

Application Areas

Reseach & Development
Experimantal setup
Laboratory use

Module types / BPS Series

Specifications	BPS 1 W	BPS 3 W	BPS 4 W
Polarity	factory fixed, positive or negative	factory fixed, positive or negative	factory fixed, positive or negative
Ripple and noise (f >10 Hz)	typ. < 10-15 mVp-p	typ. < 15-35 mVp-p	typ. < 5 mVp-p
Stability [ΔV_out/ΔV_in]	<5 • 10^-4 • V_nom	<5 • 10^-4 • V_nom	<2 • 10^-4 • V_nom
Stability [ΔV_out/ΔR_out]	<2 • 10^-3 • V_nom	<2 • 10^-3 • V_nom	<2 • 10^-3 • V_nom
Temperature coefficient	< 50 ppm / K	< 50 ppm / K	< 50 ppm / K
Supply voltage	4.5 - 5.5 V	11.5 - 15.5 V	11.4 - 12.6 V
Set / monitor voltage	0 - 2.5 V	0 - 5 V	0 - 5 V
Protection	overload and short circuit protected	overload and short circuit protected	overload and short circuit protected
HV connector	pin	pin	pin
Case	metal box, moulded	metal box, moulded	metal box, moulded
Dimensions - L/W/H	40/40/18 mm	40/40/18 mm	40/40/18 mm

Model Configurations BPS Series

BPS 1 W

Power

Vnom

Inom

BPS 3 W

Power

Vnom

Inom

BPS 4 W

Power

Vnom

Inom

BPx 02 205 5

1 W

500 V

2 mA

BPx 03 106 12

3 W

300 V

10 mA

BPx 05 805 12

4 W

500 V

8 mA

BPx 10 105 5

1 W

1 kV

1 mA

BPx 05 605 12

3 W

500 V

6 mA

BPx 10 405 12

4 W

1 kV

4 mA

BPx 15 604 5

1 W

1.5 kV

0.6 mA

BPx 10 305 12

3 W

1 kV

3 mA

BPx 20 205 12

4 W

2 kV

2 mA

BPx 20 604 5

1 W

2 kV

0.5 mA

BPx 15 205 12

3 W

1.5 kV

2 mA

BPx 30 135 12

4 W

3 kV

1.3 mA

BPx 30 504 5

1 W

3 kV

0.3 mA

BPx 20 155 12

3 W

2 kV

1.5 mA

BPx 40 105 12

4 W

4 kV

1 mA

BPx 30 105 12

3 W

3 kV

1 mA

BPx 60 674 12

4 W

6 kV

0.67 mA

OPTION SPECIFICATIONS:

Polarity: positive: x = p, negative: x = n

Quote request

Technical Datasheet BPS Series

DC_iseg_bps_p4t_.pdf

Adobe Acrobat Dokument 1.2 MB

Download

CPS Series

Compact Built-In High Voltage Modules
CPS modules are highly stable analog controlled high voltage power supplies. They are available as compact metal box or system capable in 3U Eurocassette. Standard CPS modules can be used as standalone DC/DC converters, combined to multichannel AC/DC supply in a THQ device or integrated in a modular MMS system. The output voltage is controllable via analog interface with either an external potentiometer (internal reference voltage) or an analogue control voltage. To protect the connected load the modules are equipped with INHIBIT, current and voltage limits.

Key Features

Patented resonance converter technology
Available as metal box or as mini PCB
Combinable in a THQ AC/DC HV power supply
INHIBIT
Hardware limits for voltage and current
Low ripple and noise, low EMI
Customized versions on request

Application Areas

Detector supply
Experimantal setup
Laboratory use

Module types / CPS Series

Specifications	CPS-Compact	CPS-MINI
Polarity	factory fixed, positive or negative	factory fixed, positive or negative
Ripple and noise (f >10 Hz)	< 10 kV: typ. <2 • 10^-5 • V_nom ≥ 10 kV: typ. <5 • 10^-5 • V_nom	<2 • 10^-6 • V_nom
Stability [ΔV_out/ΔV_in]	<1 • 10^-4 • V_nom	<5 • 10^-5 • V_nom
Stability [ΔV_out/ΔR_out]	<2 • 10^-4 • V_nom	<2 • 10^-4 • V_nom
Temperature coefficient	< 100 ppm / K	< 50 ppm / K
Supply voltage	22.8 - 25 V	22.8 - 25.2 V
Set / monitor voltage	0 - 5 V / optional: 0 - 10 V	0 - 5 V
Protection	overload and short circuit, INHIBIT, V/I-limit	overload and short circuit, INHIBIT, V/I-limit
Remote connector	D-Sub 9	pin
HV connector	HV-cable
Case	metal box, moulded	metal box, moulded (PCB)

Model Configurations CPS Series

CPS-Compact	Vnom	Inom	L/W/H	CPS-MINI	Vnom	Inom	L/W/H
CPx 05 206 24 5	500 V	20 mA	155/75/40 mm	CPx 10 805 24 5	1 kV	8 mA	120/40/25 mm
CPx 10 106 24 5	1 kV	10 mA	155/75/40 mm	CPx 20 405 24 5	2 kV	4 mA	120/40/25 mm
CPx 15 805 24 5	1.5 kV	8 mA	155/75/40 mm	CPx 30 255 24 5	3 kV	2.5 mA	120/40/25 mm
CPx 20 605 24 5	2 kV	6 mA	155/75/40 mm	CPx 40 205 24 5	4 kV	2 mA	120/40/25 mm
CPx 30 405 24 5	3 kV	4 mA	155/75/40 mm	CPx 60 135 24 5	6 kV	1.3 mA	120/40/25 mm
CPx 40 305 24 5	4 kV	3 mA	155/75/40 mm
CPx 50 205 24 5	5 kV	2 mA	155/75/40 mm
CPx 70 155 24 5	7 kV	1.5 mA	155/75/40 mm
CPx 100 105 24 5	10 kV	1 mA	185/75/40 mm
CPx 150 604 24 5	15 kV	0.6 mA	185/75/40 mm
CPx 200 504 24 5	20 kV	0.5 mA	185/75/40 mm
CPx 300 304 24 5	30 kV	0.3 mA	185/75/40 mm

OPTION SPECIFICATIONS:

Polarity: positive: x = p, negative: x = n

Set 0 - 10 V: AO

Quote request

Technical datasheet CPS Series

DS_iseg_cps_p4t_.pdf

Adobe Acrobat Dokument 7.6 MB

Download

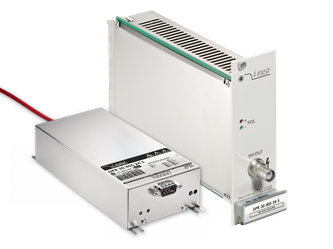

DPS Series

High Precision Built-In High Voltage Modules
DPS modules are highly precise and highly stable analog controlled high voltage power supplies. They are available as compact metal box or system capable in 3U Eurocassette standard. The modules can be used as standalone DC/DC converters, combined to AC/DC supply in a THQ device or integrated in a modular MMS system. The output voltage is controllable via analog interface with either an external potentiometer (internal reference voltage) or an analogue control voltage. To protect the connected load the modules are equipped with INHIBIT, adjustable current and voltage limits.

Key Features

Patented resonance converter technology
High precision, high stability
Very low ripple and noise, low EMI
Combinable in a multichannel THQ AC/DC HV supply (DPS-Standard )
INHIBIT, adjustable hardware limits
Polarity electronically switchable (DPS-Standard)
Customized versions on request

Application Areas

Detector supply
Experimantal setup
Laboratory use

Module types / DPS Series

Specifications	DPS-Standard	DPS-MINI
Polarity	switchable	factory fixed, positive or negative
Ripple and noise (f >10 Hz)	typ. < 3 mV p-p	<2.5 • 10^-4 • V_nom
Stability [ΔV_out/ΔV_in]	<1 • 10^-5 • V_nom	<5 • 10^-5 • V_nom
Stability [ΔV_out/ΔR_out]	<5 • 10^-5 • V_nom	<2 • 10^-4 • V_nom
Temperature coefficient	< 50 ppm / K	< 50 ppm / K
Supply voltage	22.8 - 25.2 V	22.8 - 25.2 V
Set / monitor voltage	0 - 5 V / optional: 0 - 10 V	0 - 5 V
Protection	overload and short circuit, INHIBIT, V/I-limit	overload and short circuit, INHIBIT, V/I-limit
Remote connector	D-Sub 9	pin
HV connector	HV-cable / SHV (optional)
Case	metal box, moulded (THQ capable)	metal box, moulded (PCB)

Model Configurations DPS Series

DPS-Compact	Vnom	Inom	L/W/H	DPS-MINI	Vnom	Inom	L/W/H
DPR 05 106 24 5	500 V	10 mA	186/75/40 mm	DPx 05 156 24 5	500 V	15 mA	109/62.5/25 mm
DPR 10 106 24 5	1 kV	10 mA	186/75/40 mm	DPx 10 805 24 5	1 kV	8 mA	109/62.5/25 mm
DPR 15 805 24 5	1.5 kV	8 mA	186/75/40 mm	DPx 20 405 24 5	2 kV	4 mA	109/62.5/25 mm
DPR 20 605 24 5	2 kV	6 mA	186/75/40 mm	DPx 30 305 24 5	3 kV	3 mA	109/62.5/25 mm
DPR 30 405 24 5	3 kV	4 mA	186/75/40 mm	DPx 40 205 24 5	4 kV	2 mA	109/62.5/25 mm
DPR 40 305 24 5	4 kV	3 mA	186/75/40 mm	DPx 60 105 24 5	6 kV	1 mA	109/62.5/25 mm
DPR 50 205 24 5	5 kV	2 mA	186/75/40 mm	DPx 80 105 24 5	8 kV	1 mA	98/74/22-24 mm
DPR 60 155 24 5	7 kV	1.5 mA	186/75/40 mm	DPx 100 504 24 5	10 kV	0.5 mA	103/74/25 mm

OPTION SPECIFICATIONS:

Polarity (DPS-MINI): positive: x = p, negative: x = n

SHV Connector DPS-Standard: SHV / DPS-MINI: MS

Set 0 - 10 V (DPS-Standard): AO

Cable Version (DPS-MINI): MK

Technical Datasheet DPS Series

DS_iseg_dps_p4t_.pdf

Adobe Acrobat Dokument 8.8 MB

Download

Quote request

EPS Series

Versatile Built-In High Voltage Power Modules
EPS modules are versatile DC/DC high voltage power supplies with multiple options. The modules are available as compact metal box in 60W and 150W versions or multichannel system capable in 3U Eurocassette-standard in 60W. EPS modules can be used as standalone DC/DC converters, combined to AC/DC supply in a THQ series or integrated in a modular multichannel MMC system. The output voltage is controllable via analog interface with either an external potentiometer (internal reference voltage) or an analog control voltage. To protect the connected load the modules are equipped with INHIBIT and INTERLOCK (optional). The patented resonance converter technology and metal box shielding garantee lowest electromagneic interference. To fit best in different application EPS modules can be equipped with ARC management or as capacitor charger with very low output voltage overshoot (option CLD).

Key Features

Patented resonance converter technology
High efficiency
Voltage and current control
Low ripple and noise, low EMI
Multiple options (INTERLOCK; ARC, CLD)
Highly customizable, optimized versions on request

Application Areas

Detector supply
Experimantal setup
Laboratory use

Module types / EPS Series

Specifications	EPS 60 W	EPS 150 W
Polarity	factory fixed, positive or negative	factory fixed, positive or negative
Ripple and noise (f >10 Hz)	< 10 kV: typ. <5 • 10^-4 • V_nom ≥ 10 kV: typ. <2 • 10^-2 • V_nom	< 10 kV: typ. <5 • 10^-4 • V_nom ≥ 10 kV: typ. <2 • 10^-2 • V_nom
Stability [ΔV_out/ΔV_in]	ΔV_out <0.01% • V_nom	ΔV_out <0.01% • V_nom
Stability [ΔV_out/ΔR_out]	ΔV_out <0.02% • V_nom	ΔV_out <0.02% • V_nom
Temperature coefficient	< 100 ppm / K	< 100 ppm / K
CLD-Repeat accuracy	<0.01•V_out	<0.01•V_out
Supply voltage	22.8 - 26.4 V	21 - 29 V
Set / monitor voltage	0 - 5 V / optional: 0 - 10 V	0 - 5 V / optional: 0 - 10 V
Protection	overload and short circuit, INHIBIT, overvoltage/overtemp	overload and short circuit, INHIBIT, overvoltage/overtemp
Remote connector	D-Sub 9	D-Sub 9
Interlock	optional	optional
HV connector	HV-cable	HV-cable
Case	metal box,	metal box
Dimensions (L/W/H)	185/108.5/57 mm	170/188/60 mm

Model Configurations EPS Series

EPS 60 W	Vnom	Inom	Ripple and Noise	EPS 150 W	Vnom	Inom	Ripple and Noise
EPx 05 127 24 5	500 V	120 mA	<5 • 10^-4 • V_nom	EPx 10 157 24 5	1 kV	150 mA	<5 • 10^-4 • V_nom
EPx 10 606 24 5	1 kV	60 mA	<5 • 10^-4 • V_nom	EPx 20 756 24 5	2 kV	75 mA	<5 • 10^-4 • V_nom
EPx 15 406 24 5	1.5 kV	40 mA	<5 • 10^-4 • V_nom	EPx 40 406 24 5	4 kV	40 mA	<5 • 10^-4 • V_nom
EPx 20 605 24 5	2 kV	30 mA	<5 • 10^-4 • V_nom	EPx 80 206 24 5	8 kV	20 mA	<5 • 10^-4 • V_nom
EPx 30 206 24 5	3 kV	20 mA	<5 • 10^-4 • V_nom	EPx 120 126 24 5	12 kV	12.5 mA	<5 • 10^-4 • V_nom
EPx 40 156 24 5	4 kV	15 mA	<5 • 10^-4 • V_nom	EPx 150 106 24 5	15 kV	10 mA	<5 • 10^-4 • V_nom
EPx 50 126 24 5	5 kV	12 mA	<5 • 10^-4 • V_nom	EPx 200 755 24 5	20 kV	7.5 mA	<5 • 10^-4 • V_nom
EPx 60 106 24 5	6 kV	10 mA	<5 • 10^-4 • V_nom	EPx 300 505 24 5	30 kV	5 mA	<5 • 10^-4 • V_nom
EPx 80 705 24 5	8 kV	7 mA	<5 • 10^-4 • V_nom
EPx 100 605 24 5	10 kV	6 mA	<5 • 10^-4 • V_nom
EPx 150 405 24 5	15 kV	4 mA	<2 • 10^-2 • V_nom
EPx 200 305 24 5	20 kV	3 mA	<2 • 10^-2 • V_nom
EPx 300 205 24 5	30 kV	2 mA	<2 • 10^-2 • V_nom

OPTION SPECIFICATIONS:

Polarity (DPS-MINI): positive: x = p, negative: x = n

ARC management: ARC

Capacitor charger: CLD

Set 0 - 10 V: AO

Technical Datasheet EPS Series

DC_iseg_eps_p4t_.pdf

Adobe Acrobat Dokument 2.3 MB

Download

Quote request
