Dual Channel Cycling Station with Extended Sink Power

ABC-170CE
System for Fuel Cells Testing

Webasto Charging System ABC-170CE power processing system is used to meet fuel cell testing and sinking power needs. Originally developed for fuel cell testing applications and for systems that required additional sinking power, meanwhile can be also used to cycle hybrids and batteries.

Power:                   from  -170 kW to +125 kW
Voltage range:    +8 VDC to +420 VDC
Current range:    -640 ADC to +530 ADC




Key Features

  • 99% Power Factor
  • Energy Returned to the Grid at 92+% Efficiency
  • Dual Independently Controlled Channels
  • Analog Control Signal
  • Automatic Shutdown on Loss of Power (Anti-Islanding)
  • Independent Channel Interlock
  • Load Disconnect Protection (camlock model only)
  • Easy Front Panel Connections
  • Emergency Stop Button
  • Flexible DC Supply or Load Capabilities
  • Fully Programmable Computer Control
  • Multiple Control Interfaces/Options: Manual, Remote Operating System (ROS) Software, LabView, CAN and
    3rd Party Control
    Software

  • Remote Voltage Sense
  • Bi-Directional Load Capability
  • CE Certified

Download
ABC 170CE Dual Channel Cycling System with Sink Power
ABC170CE_Datasheet_Webasto.pdf
Adobe Acrobat Dokument 281.5 KB


High Voltage Dual Channel Cycling Station

ABC-600CE
High Voltage Cycling System


Webasto Charging System is a high voltage Cycling Station that was originally developed to meet specific customer requirements. This system is ideal for testing hybrid vehicles and high voltage drivetrains, motors and energy storage devices. The ABC-600 offers power up to 150kW, with a voltage range of 8 to 600 VDC and a current range of +/- 600 ADC.

Power:                   from -150 kW to +150 kW
Voltage range:    +8 VDC to +600 VDC
Current range:    -600 ADC to +600 ADC







Key Features

  • 99% Power Factor
  • Energy Returned to the Grid at 92+% Efficiency
  • Dual Independently Controlled Channels
  • Analog Control Signal
  • Automatic Shutdown on Loss of Power (Anti-Islanding)
  • Independent Channel Interlock
  • Load Disconnect Protection (camlock model only)
  • Easy Front Panel Connections
  • Emergency Stop Button





  • Flexible DC Supply or Load Capabilities
  • Fully Programmable Computer Control
  • Multiple Control Interfaces/Options: Manual, Remote Operating System (ROS) Software, LabView, CAN and 3rd Party Control Software
  • Remote Voltage Sense
  • Bi-Directional Load Capability
  • CE Certified




Download
ABC-600CE High Voltage Dual Channel Cycling Station
ABC600_ABC600CE_Datasheet_Webasto.pdf
Adobe Acrobat Dokument 294.7 KB


Heavy Duty Dual Channel Cycling Station

900CE

Cycling and Testing System for Large Hybrids



The 900CE is a heavy duty test solution. With greater voltage, current and power capability, this system is ideal for testing and emulating energy storage and drivetrain components of large electric and hybrid electric vehicles (HEV), such as buses, trucks and military vehicles. The 900CE is used worldwide to support the development of fuel cell buses, hybrid locomotives and other HEVs. The Cycling Systems is equipped with a real-time clock on ist control board that enables accurate measurement of Ah and kWh during cycling.

Power:                   from -250 kW to +250 kW
Voltage range:    +8 VDC to +900 VDC
Current range:    -500 ADC to +500 ADC



Key Features

  • 99% Power Factor
  • Energy Returned to the Grid at 92+% Efficiency
  • Dual Independently Controlled Channels
  • Analog Control Signal
  • Automatic Shutdown on Loss of Power (Anti-Islanding)
  • Independent Channel Interlock
  • Load Disconnect Protection (camlock model only)
  • Easy Front Panel Connections
  • Emergency Stop Button





  • Flexible DC Supply or Load Capabilities
  • Fully Programmable Computer Control
  • Multiple Control Interfaces/Options: Manual, Remote Operating System (ROS) Software, LabView, CAN and 3rd Party Control Software
  • Remote Voltage Sense
  • Bi-Directional Load Capability
  • CE Certified

Download
900CE Dual Channel Cycling Station
900CE_Datasheet_Webasto.pdf
Adobe Acrobat Dokument 302.5 KB

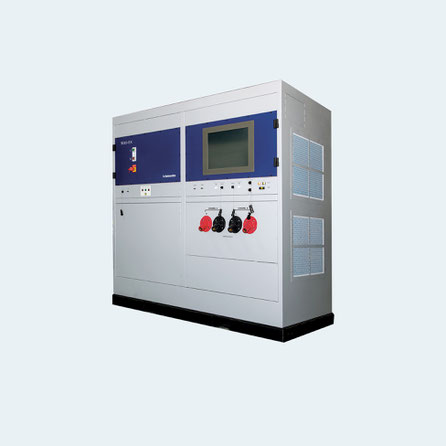

Advanced High Power Test System

900-EX
Powering up to 1MW

The 900EX is ideal for testing and emulating energy storage and drive train components. The increased performance (rise time/slew rate) and increased accuracy make the 900EX ideal for applications like heavy industrial (ships, trains, trucks and aircraft), military (hybrid drives and aircraft launch systems), power electronics (solar panels, inverters) and hardware in the loop testing. Digital controls protect critical systems and componets, and the system can self-adjust to external environmental events, like unstable power sources. The bi-directional system can operate at +/- 250kW, or combined, it can scale to

+/- 1MW. The 900EX, with new LCD touchscreen dispaly, is an intelligent system that will give you the accuracy, speed, and control to add value to your test.



Power:                   from -250 kW to +250 kW (extandable upto 1 MW)
Voltage range:    +8 VDC to +900 VDC
Current range:    -1000 ADC to +1000 ADC (extandable upto -/+4000 ADC)



Key Features

  • Industry standard for high performance testing
  • Flexibly test virtually any DC source, load or battery storage system
  • Enhanced error detection & fault correction
  • Test faster and more efficiently > Save time & money
  • Regenerative to the grid > Save energy and money
  • More accurately represent real world conditions > More predictive results



  • Two channels for flexibility in testing/simulating multiple devices with a single machine
  • Open communication protocol allowing easy integration into any test set-up
  • Self-contained cooling system requiring no external cooling system
  • Control Model: Voltage, Current, Power, Resistance, Voltage with Internal Resistence

Download
900-EX Advanced High Power Test System
900EX_Datasheet_Webasto.pdf
Adobe Acrobat Dokument 365.4 KB
